GRINDING TOOLS

For Universal Machining Centres

Product variants

Shape
Dimensions
Specification

Shape
Type number
Dimensions
Mounting
Specification
Delivery unit

34365835
100 x 40 x 32
63 x 20
SU33A 1202 HH10P VB1
1

34365826
100 x 40 x 32
63 x 20
SU33A 802 II10P VB1
1

34365844
120 x 30 x 32
63 x 15
SU33A 1202 HH11P VB1
1

34365842
120 x 30 x 32
63 x 15
SU33A 802 II11P VB1
1

34365846
140 x 30 x 32
63 x 15
SU33A 1202 HH11P VB1
1

34365843
140 x 30 x 32
63 x 15
SU33A 802 II11P VB1
1

34365839
160 x 40 x 50,8
95 x 20
SU33A 1202 HH10P VB1
1

34365838
160 x 40 x 50,8
95 x 20
SU33A 802 II10P VB1
1

2 S

34372157
120 x 30 - W=10
SU33A 1202 HH11P VB1 /32
1

34372156
120 x 30 - W=10
SU33A 802 II11P VB1 /32
1

34372159
140 x 30 - W=10
SU33A 1202 HH11P VB1 /32
1

34372158
140 x 30 - W=10
SU33A 802 II11P VB1 /32
1

12A2TKM

34363430
117 x 40 x 32
21
0

34363472
137 x 40 x 32
32,5
0

Product information

Description

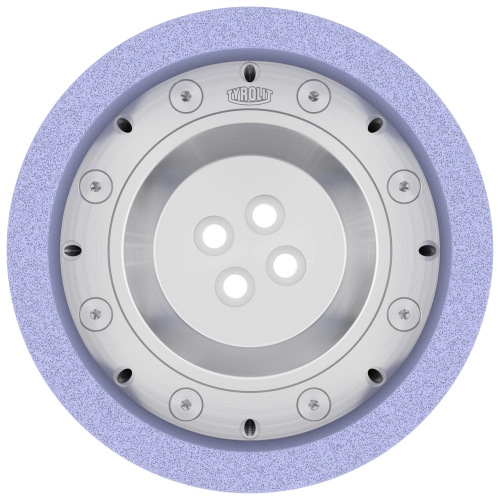

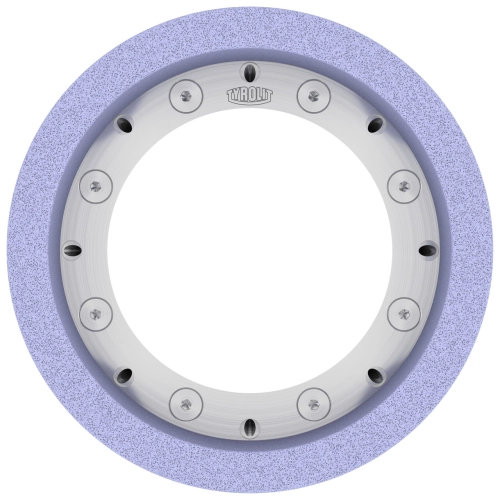

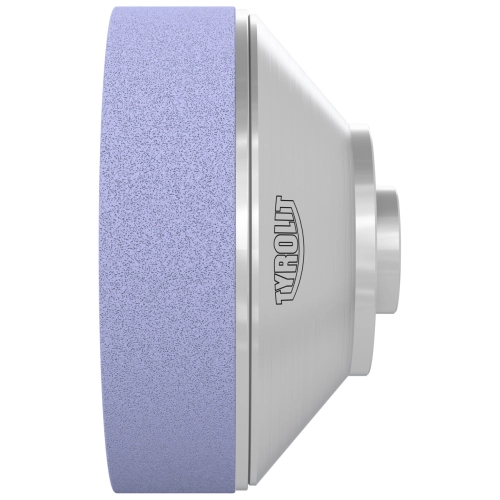

Coolant supply for the grinding process is via the tool spindle through the grinding tool itself, or alternatively is directed through the grinding tool holder to the grinding zone. This purpose-built holder facilitates a fast grinding tool change.

Features

Customised grinding tools:
For the different quality require- ments and performance demands both conventional grinding tools and specifications with superabra- sives are available. These grinding tools have been customised for grinding applications on universal machining centres.
Easy coolant supply:
Defined specifications facilitate a direct coolant supply through the grinding tool into the grinding process. When deploying the grinding tool holder the coolant flows through the holder to the grinding gap.
High profitability:
Integrating grinding tools on turning and milling centres means the specified profile and surface requirements can be accomplished in a single setup.
System solution:
The specification of the grinding tools is optimally adjusted to their use with Tyrolit dressing tools.
Fast tool change::
Using the grin- ding tool holder enables an easy and fast changeover of various grinding wheel specifications.
