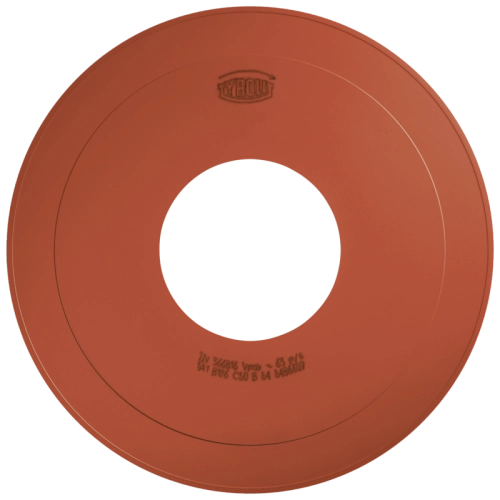

VIB STAR external cylindrical grinding wheels resin CBN

for high-alloyed steels and HSS

High economic efficiency
Reduced vibrations
Self-sharpening effect

Developed for:

Product variants

Shape
Dimensions
Specification

Shape
Type number
Dimensions
Mounting
Specification
Delivery unit

1A1

914301
200 x 15 x 51
15 - 3
51B 126 C50 B
1

34636578
200 x 15 x 31,75
15 - 3
51B 126 C50 B
0

34567558
200 x 15 x 32
15 - 3
51B 126 C50 B
0

34636756
200 x 15 x 32
15 - 3
51B 126 C75 B
0

34701645
200 x 15 x 31,75
15 - 3
51B 126 C75 B
0

885972
300 x 20 x 127
20 - 3
51B 126 C50 B
1

877158
300 x 20 x 76,2
20 - 3
51B 126 C50 B
1

34448298
300 x 20 x 76,2
20 - 3
51B 126 C50 B
0

34448299
300 x 20 x 127
20 - 3
51B 126 C50 B
0

34448297
300 x 20 x 76,2
20 - 5
51B 126 C50 B
0

394560
300 x 20 x 76,2
20 - 5
51B 126 C50 B 54 BQ
1

34448311
350 x 20 x 127
20 - 3
51B 126 C50 B
0

34448300
350 x 20 x 127
20 - 5
51B 126 C50 B
0

365327
350 x 20 x 127
20 - 5
51B 126 C50 B 54 BQ
1

366816
350 x 20 x 127
20 - 3
51B 126 C50 B 54 BQ
1

34448312
350 x 20 x 127
20 - 3
51B 126 C75 B
0

874510
350 x 20 x 127
20 - 3
51B 126 C75 B 54 BQ
1

34449741
400 x 50 x 127
50 - 5
51B 126 C50 B
0

34448313
400 x 30 x 127
30 - 3
51B 126 C50 B
0

872688
400 x 20 x 127
20 - 3
51B 126 C50 B
1

34448314
400 x 20 x 127
20 - 5
51B 126 C50 B
0

473086
400 x 30 x 127
30 - 3
51B 126 C50 B
1

34447898
400 x 20 x 127
20 - 3
51B 126 C50 B
0

508495
400 x 20 x 127
20 - 5
51B 126 C50 B
1

34641431
500 x 30 x 127
30 - 3
51B 126 C50 B 54 AL
0

Product information

Description

The VIB STAR external grinding wheel is made with a vibration-reducing core. This enables a consistent and quiet grinding process. A constant self-sharpening effect also guarantees consistent power consumption and therefore high economic efficiency of the tool. Low wear results in a high level of dimensional accuracy on the workpiece, thereby reducing dimensional inspections to a minimum.

Features

High economic efficiency:
A constant self-sharpening effect, dependent on the peripheral speed, comes into its own with speed-controlled machines.
No vibration:
The VIB STAR core has excellent vibration damping properties and reduces vibration at the machine and workpiece.
Superabrasives:
The use of a CBN abrasive means you receive an especially durable tool for an exceptional surface finish.

Applications

For external cylindrical grinding of high-alloyed steels and HSS
The use of CBN abrasives provides you with a particularly durable tool for a high surface quality
